MCR：standard model

2.5-8200N·m Max.

Hole 100mm

MCR-G:connected with elastic coupling

2.5-8200N·m Max.

Hole 90mm

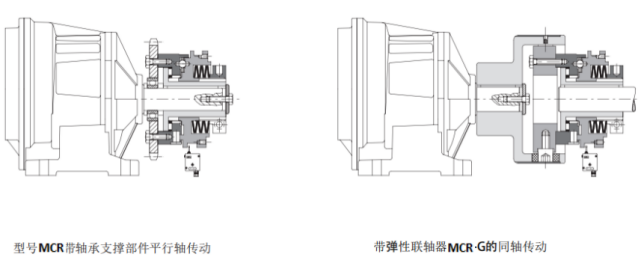

Assembly example

K type：Ball-type torque limiter suitable for stable transmission with high torque and vibration

Roller drive

Automatic re-engagement at equal intervals or 360°

Compact size, high torque setting

Same intervention torque in both directions

Torque range: 5-8200Nm; maximum hole: φ100mm

Z type：Ball-type torque limiter, with high sensitivity when the torque changes suddenly

Roller drive

Ensure high sensitivity and direct intervention during minimum torque changes

Automatic re-engagement at equal intervals

Same intervention torque in both directions

Torque range: 25-3600Nm; maximum hole: φ100mm

ZL type：Roller type torque limiter manual reset structure

Roller drive

After overload, the driving end and the transmission end are completely separated

To reset manually, use a hammer or other tools to hit the moving ring

Compact size, high torque setting

Torque range: 5-8000Nm; maximum hole: φ100mm

MINGCHUAN safety equipment has the "same" internal re-engagement function, the roller arrangement compound the requirements of the mathematical best solution, and the 360° oily position can provide a safe support balance. When the limiter is disengaged, ensure that at least three equally spaced rollers are located on the rolling surface

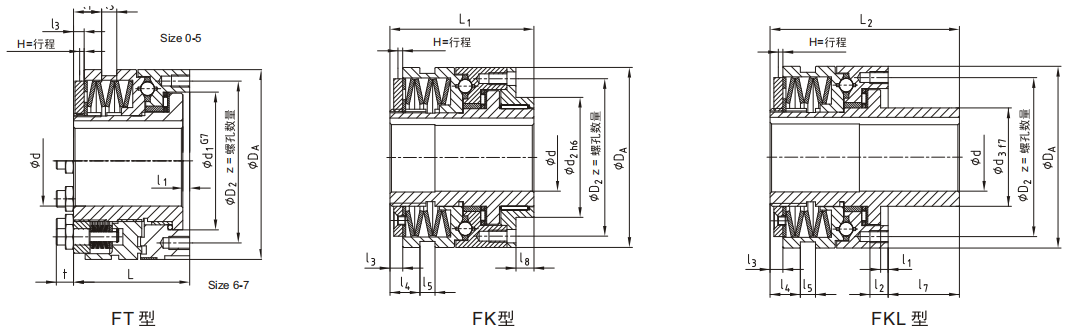

Dimensions

Specification	d1	D2	DA	dH7	d2	d3	l1	l2	l3	l4	l5	l7	l8	L	L1	L2	Z	H (stroke）
Specification	d1	D2	DA	Max.	d2	d3	l1	l2	l3	l4	l5	l7	l8	L	L1	L2	Z	Z	k
0	41	48	55	20	38	28	4	6.5	3	7.5	9	27.5	8	38.5	51	66	6×M5	1.4	1.2
1	60	70	82	25	50	38	4	8	6	11.5	9	33	10	52	70	85	6×M5	2.3	1.8
2	78	89	100	35	60	52	5	10	5	12	9	39	12	61	78	100	6×M6	2.4	2
3	90.5	105	120	45	80	65	5	12	8.5	21	10	47	12	78	96	125	6×M8	2.7	2.2
4	105	125	146	55	10	78	6.5	15	11	27	9	52	16	100	124	152	6×M10	3.7	2.5
5	120	155	176	65	120	90	6.5	17	12	33	9	57	18	113	140	171	6×M12	4.6	3
6	136	160	200	80	130	108	7	20	14	39	9	64	20	119	150	183	6×M12	5	3.5
7	168	200	240	100	160	135	8	25	15	46	9	72	25	141	175	213	6×M16	5.5	4

Performance parameter

Specification	Z type torque （Nm）				K、ZL type torque （Nm）				Mass（Kg）
Specification	T1	T2	T3	T4	T1	T2	T3	T4	Mass（Kg）
0	2.5-5	5-20		20-40	5-10	10-40			0.41
1	6-12	12-25	25-55	55-100	12-25	25-50	50-100		1.30
2	12-25	25-50	50-120	120-200	25-50	50-100	100-200		2.27
3	25-50	50-100	100-250	200-450	50-100	100-200	200-450		3.88
4	50-100	100-200	200-500	500-1000	100-200	200-400	400-800	800-2000	8.34
5	85-250	230-600	300-1000	600-2000	170-450	350-900	600-1800	1200-3400	13.51
6	180-480	360-960	720-1950	1600-3300	300-750	600-1500	1200-3000	2900-5800	21
7	250-520	500-1050	1000-2100	2000-3600	550-1100	1100-2200	2200-4000	3000-8200	37

Description

? The weight is related to the hole diameter

? Can be equipped with micro mechanical switch or proximity switch

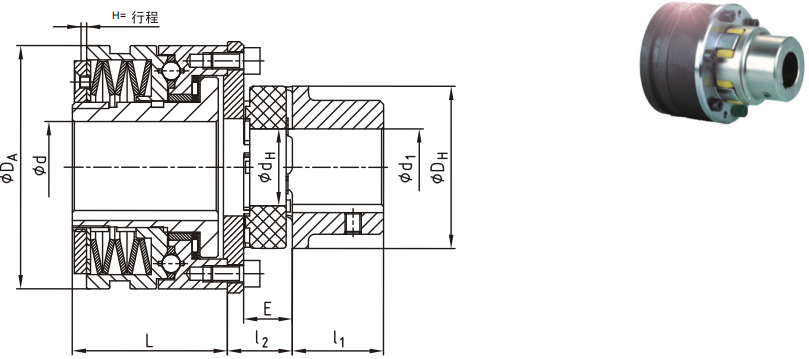

MCR-G Models equipped with claw couplings: technical data

Dimensions

Specification	DA	dH7	d1H7	DH	dH	E	l1	l2	L	H(stroke）
Specification	DA	Max.	Max.	DH	dH	E	l1	l2	L	Z	K
0	55	20	38	65	30	20	35	28.5	38.5	1.4	1.2
1	82	25	45	80	38	24	45	32.5	52	2.3	1.8
2	100	35	60	105	51	28	56	38	61	2.4	2
3	120	45	70	120	60	30	65	43	78	2.7	2.2
4	146	55	95	160	80	40	85	56.5	100	3.7	2.5
5	176	65	110	200	100	45	100	62	113.5	4.6	3
6	200	80	115	225	113	50	110	72	119	5	3.5
7	240	100	125	225	127	55	120	78	141	5.5	4

Technical details

Specification	Z type torque（N·m）				K、ZL type torque（N·m）				Mass
Specification	T1	T2	T3	T4	T1	T2	T3	T4	（kg）
0	2.2-5	5-20		20-40	5-10	10-40			0.83
1	6-12	12-25	25-55	55-100	12-25	25-50	50-100		2.11
2	12-25	25-50	50-120	120-200	25-50	50-100	100-200		3.17
3	25-50	50-100	100-250	200-450	50-100	100-200	200-450		5.10
4	50-100	100-200	200-500	500-1000	100-200	200-400	400-800	800-2000	11.31
5	85-250	230-600	300-1000	600-2000	170-450	350-900	600-1800	1200-3400	18.56
6	180-480	360-960	720-1950	1600-3300	300-750	600-1500	1200-3000	2900-5800	28.6
7	250-520	500-1050	1000-2100	2000-3600	550-1100	1100-2200	2200-4000	3000-8200	46.1

Description

? The quality is related to the actual hole

? If you need more torque or enlarge the hole, please contact our company

? Can be equipped with micro-mechanical switch or proximity switch
