MCM Thimble torque limiter

產品型號:

標準編號:
聯軸器類型:
公稱轉矩:
軸孔:
外形尺寸:
孔徑:
重量:
長度:
外徑:
是否提供加工定制:

產品描述
參數詳情

Made of high-performance steel, high mechanical strength

Can rotate freely after separation, no residual torque

The equipment is safe and reliable without maintenance

Protect equipment from external substances

Suitable for working under high speed and high inertia conditions

The calibration system has a simple structure and can be re-engaged

Compact structure and stable design



On demand

Overload information friction plate (.../SI)

Can be assembled into holes and keyways or locking components

Customizable solutions for specific applications

Special surface anti-corrosion treatment can be carried out to meet special requirements


A torque limiter equipped with a combined torque adjustment device. It can be completely disengaged after overload, suitable for high speed conditions, and the torque setting is higher. Can be assembled with a larger diameter drive shaft. The torque module can be adjusted individually, and the re-engagement of the equipment unit requires manual reset.

Application

Extruder

Mining industry and conveyor

Heavy industry

Earth-moving machinery and crushing/crushing machinery



Advantages and features

Protect the product in case of overload

In the event of a collision, protect the mechanical operating unit

Protect the drive device when an external overload occurs

Protective belt conveyor stop device




MCM:The basic model of parallel shaft transmission, equipped with sprocket, gear or sliding

1000-160000Nm Max.torque

hole 290mm

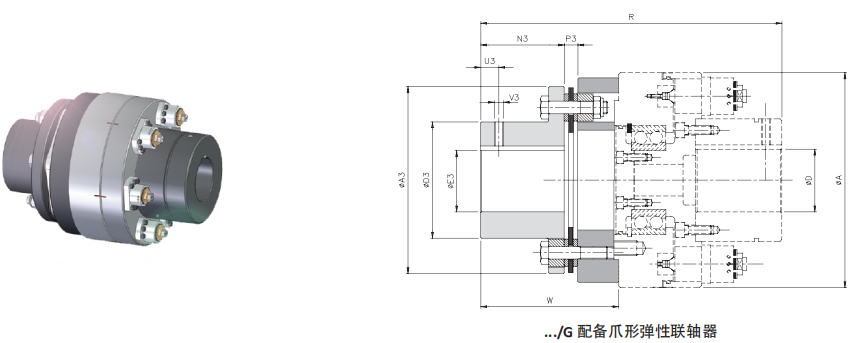

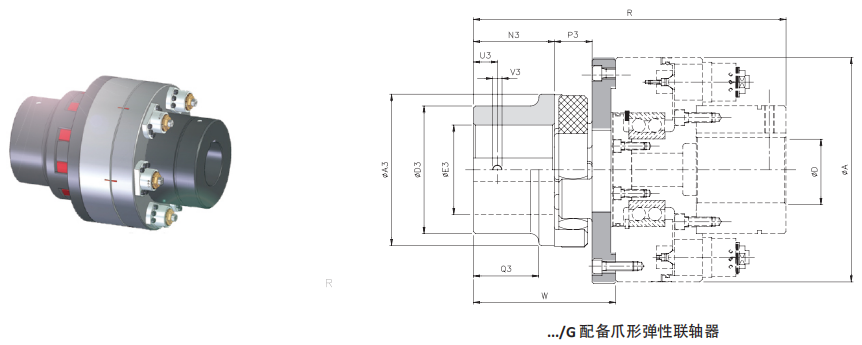

.../G:Coaxial connection through flexible coupling, absorbing start button and vibration

1000-160000Nm Max.torque

Hole 290mm

Please consult our company



.../R:Coaxial connection via diaphragm coupling, suitable for backlash-free transmission

1000-160000Nm Max.torque

Hole 290mm

Please consult our company


Application example

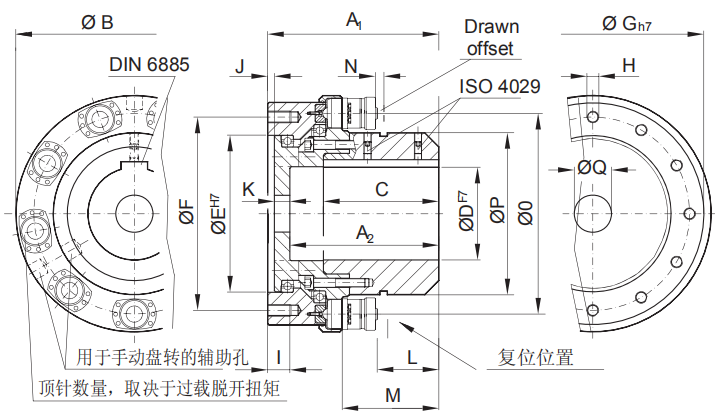

Dimensions

Specification

DH7(mm)

A1

A2

B

C

E

F

G

I

J

K

L

M

O

P

H

Max.inner hole

1

110

183

158

270

120

170

220

259

25

6

17

45

95

220

170

12×M16

2

140

230

200

318

155

210

260

298

30

8

20

83

130

270

218

12×M16

3

200

320

275

459

220

300

360

418

35

8

30

96

165

376

295

12×M20

4

290

410

360

648

290

450

570

618

40

10

38

136

225

532

418

12×M24


Performance parameter

Specification

Torque(Nm)

Stroke(mm)

Inertia

(kg·m2

Max.speed

(rpm)

Mass

(kg)

T1

T2

T3

1

1000-6000

2000-10000

6000-1800

4

0.37

4200

40

2

2000-8000

4000-15000

10000-25000

4

0.78

3800

63

3

8000-18000

15000-35000

30000-60000

7.5

4.6

2500

179

4

20000-50000

40000-100000

80000-160000

10

24.6

2000

463



Description

?Mass and inertia refer to the maximum number of holes and modules

?Can be equipped with micro mechanical switch or proximity switch
