MCF Roller type torque limiter

產品型號:

標準編號:
聯軸器類型:
公稱轉矩:
軸孔:
外形尺寸:
孔徑:
重量:
長度:
外徑:
是否提供加工定制:

產品描述
參數詳情

Roller drive

This specification is an ultra-wearable limiter, suitable for those working conditions that require frequent disengagement

Can single point reset or 360°equidistant 30° 45° 60° re-engagement

Drive disconnection can be realized by electromechanical switch/proximity switch

Compared with electronic systems, the device can directly intervene, and the response capability is improved. No maintenance, long service life, high stability

Suitable for working in humid and oily environment





On request

Equipped with a complete set of transmission gears, all turned and assembled (sprockets, pulleys, gear pairs)

For low intervention torques, coil springs can be used

Connected by opening and keyway or expansion sleeve

A half coupling can be added to realize the transmission between shaft and shaft (for this specification, if coupling parameters are required



The torque limiter uses rollers to achieve motion transmission. When the set torque is reached, the overload slips. At the same time, it can be equipped with a proximity switch or a mechanical switch to detect the overload displacement and output an electrical signal. It is suitable for use in environments that require frequent disengagement, such as automatic screwing. Screw machine, capping machine, etc.



Assembly example

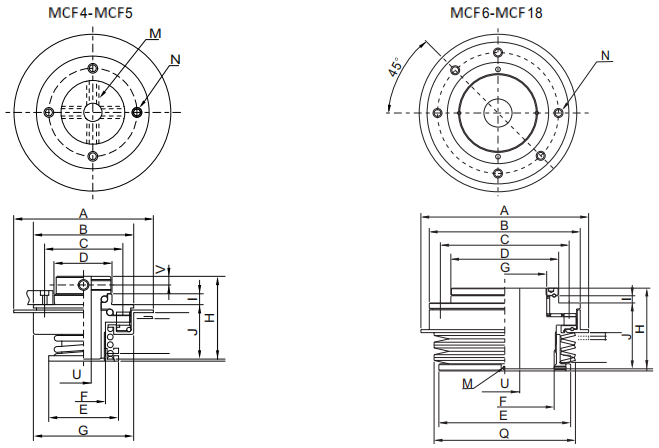

Dimensions

model

A

B

C

UH7

Inner hole

D

E

F

G

H

I

J

M

N

Q

S

V

Max.

4

64

46

36

12

26

32

M20

46

38

4.7

25

M5×4

M4×4

-

7

4

5

82

63

50

20

35

45

M30

63

50

4.7

34

M6×4

M4×4

-

9

6

6

88

88

75

30

60

58

M40

M40

60

5

48

M5×2

M6×6

-

12.5

-

7

128

113

95

40

75

88

M55

M52

70

6.6

55

M5×2

M6×6

102

16.5

-

8

164

138

120

52

100

108

M75

M72

82

7.6

65

M5×2

M8×6

130

16.5

-

11

198

170

148

68

120

134

M96

M90

95

9.6

75

M5×2

M10×6

160

27

-

14

236

206

180

90

150

158

M120

M120

105

10.4

85

M6×2

M12×6

186

27

-

18

280

252

215

110

180

220

M165

M140

135

12

110

M6×6

M16×6

236

50

-


Performance parameter

specification

Torque(N·m)

stroke(mm)

Inertia

(Kg·m2)

Maximum speed

(rpm)

Mass

(kg)

T1

T2

T3

T4

4

0.3-0.7

0.4-1

1-3

1.5-4.5

1.2

0.00005

2000

0.25

5

0.8-3

1.5-6

2-10

4-18

1.2

0.00024

1600

0.50

6

2-7

3-10

15-50

15-50

1.6

0.0013

800

1.5

7

22-70

40-120

80-250

120-400

2.0

0.0048

600

3.4

8

50-120

70-200

120-400

200-600

2.0

0.015

400

6.2

11

80-250

120-350

220-850

350-1200

2.5

0.035

300

11.4

14

110-300

150-450

420-1200

600-1800

2.8

0.085

250

20

18

400-1300

800-1800

1500-3000

3000-5000

3.9

0.3

180

42


Description

?If there is no requirement, the keyway is produced in accordance with the national standard (GB/T 3852)

?Assembly tolerance can be processed according to requirements

?The quality is related to  the inner hole size

?Can be equipped with micro mechanical switch or proximity switch
